Applicable materials Film or Flakes :
PET Bottle Flakes
Vacuum drying drum
is equipped with rotating disk. Evaporate the extra moisture on the materials by friction heat. The drum is also equipped with vacuum dryer, which can exhaust the moisture and impure gas and keep the drum under almost vacuum drying condition to reduce the impact of the moisture to the materials. And then the materials are compressed and fed to the screw.
Screw
Melt the raw materials and transport the molten materials steadily to the pelletizer.
Vacuum degassing system
degas the extra gas and impurities volatilized by the materials.
Filtering system
remove the impurities of the molten materials. There are double plates, double pistons, and back flush, etc. According to the shape and cleanliness of the materials, we provide different suitable filtering systems to our customers. Besides, we provide two filtration systems formed in one machine to replace traditional two-stages machine, which prevents the materials from contacting air and contamination while transporting.
Pelletizing system
HF-FTO-V series use the flow channel pelletizer to replace traditional strand pelletizer. Flow channel can feed the materials to the cutter automatically to reduce the loss of manpower.
Centrifugal dehydrator
get rid of extra water from the pellets by means of rotating. Compared to traditional wind dryer, the centrifugal dryer can remove water more effectively.
Vibrating screen machine
Use two metal plates with different size holes to select the suitable size pellets by vibrating.
Description

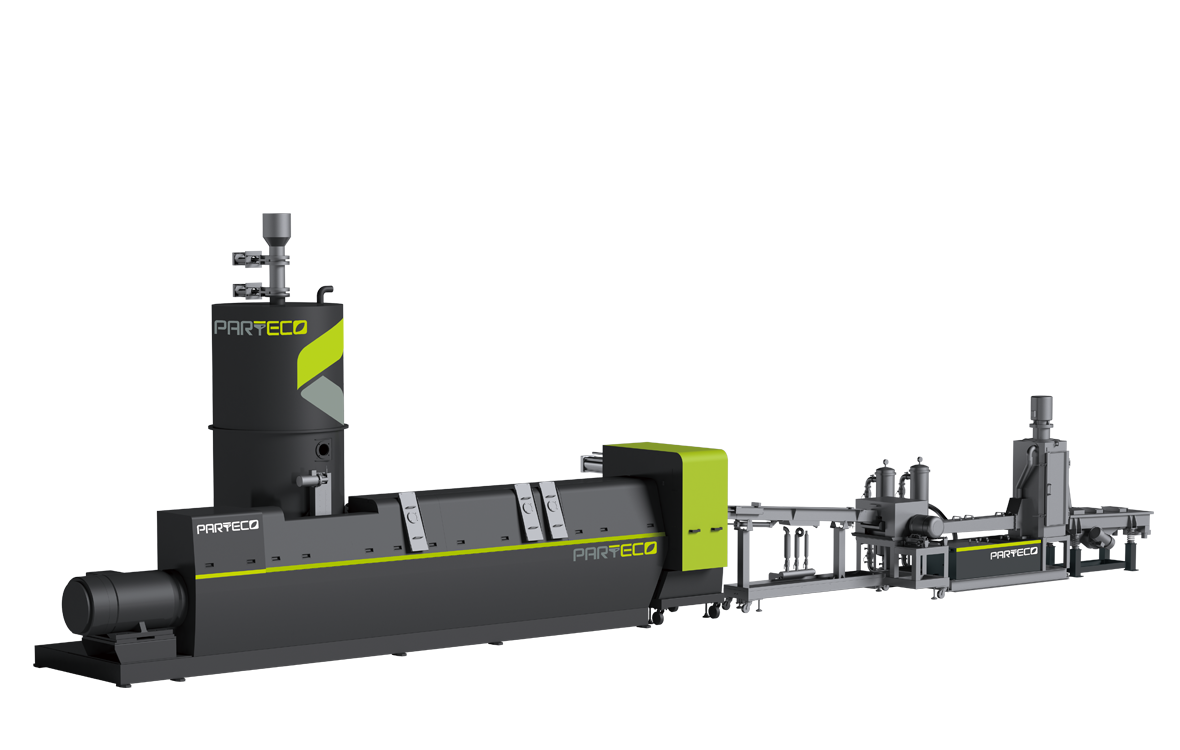

In order to process PET, which is the most common plastic recycling material, PARTECO has developed this PET extrusion pelletizing machine line. The subject machine line (machine system) is mainly applied to the processing of PET crushed chips recycled from PET bottles.
PET Flakes pelletizing is a suitable way to turn your waste into a resource. By extruding, pelletizing, and drying, the waste bottles become pellets.
The pellets are widely used in many industries, like sheet, profile, and spinning.
By means of vacuum degassing system to remove the water and impurities, then go through the melting extrusion, filtering and granulating process to tailor made the complete PET recycling solutions for you.
